Guangdong Sheungchak Hydraulic Technology Co., Ltd. is one of the leading manufacturers and suppliers of k3v112 in China. With abundant experience, we warmly welcome you to buy high-grade k3v112 for sale here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.

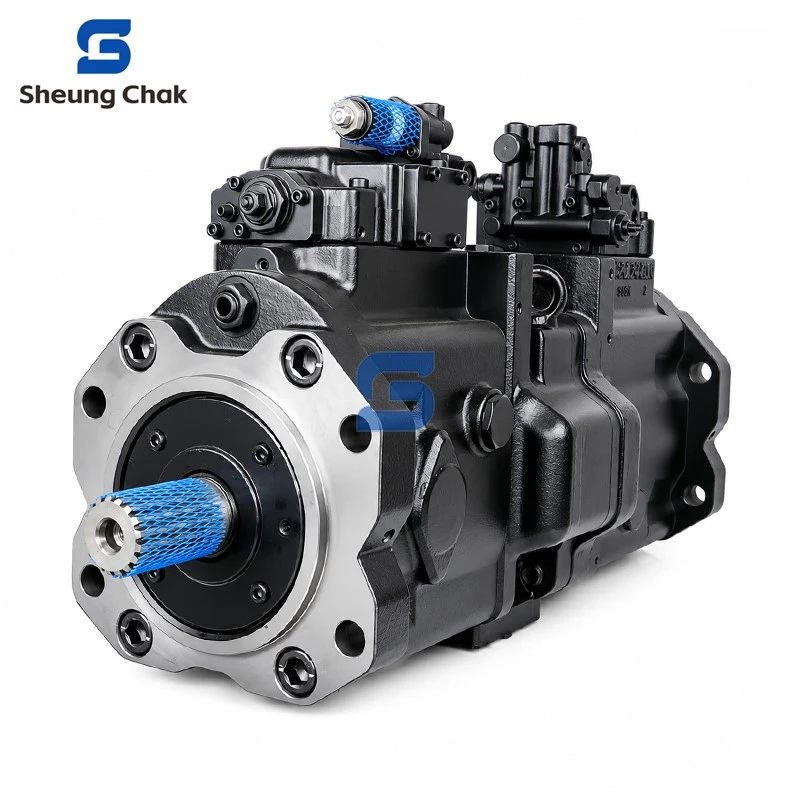

K3V112 series
High-pressure pump
Open-circuit use
Variable displacement
Swash-plate construction
System position
Main hydraulic circuit
Main pump duty
Not auxiliary pump
Typical machine
Excavator
Construction machine
Earthmoving equipment
Duty class
Medium to heavy duty
Key Features & Benefits
Compact structure
High power density
Good suction performance
Low noise level
Long service life with correct oil and filtration
Control options by model
Single / double pump arrangement
PTO version for selected build
[Talk to Our Engineers About Your Application →]
Technical Specifications
|
Item |
Data |
|
Pump type |
Variable displacement swash-plate axial piston pump |
|
Circuit type |
Open circuit |
|
Displacement |
112 cc/rev per section |
|
Layout |
K3V112S / K3V112DT / K3V112DP / K3V112DTP |
|
Rated pressure |
34.3 MPa |
|
Peak pressure |
39.2 MPa |
|
Max self-priming speed |
2360 rpm |
|
Max speed |
2700 rpm |
|
Theoretical flow @ 1500 rpm |
168 L/min per section |
|
Approx. mass |
68 kg single / 125 kg tandem |
|
Hydraulic fluid |
Antiwear hydraulic oil |
|
Oil temperature |
-20°C to +95°C |
|
Oil viscosity |
10 to 1000 mm²/s |
|
Filtration |
Suction 80–150 mesh / return 10 μm nominal |
|
Port specification |
By model code and installation drawing |
Note
Shaft / flange / port / rotation / regulator
Confirm by full model code or drawing before quote
[Request Quote for Your Displacement & Control Type →]

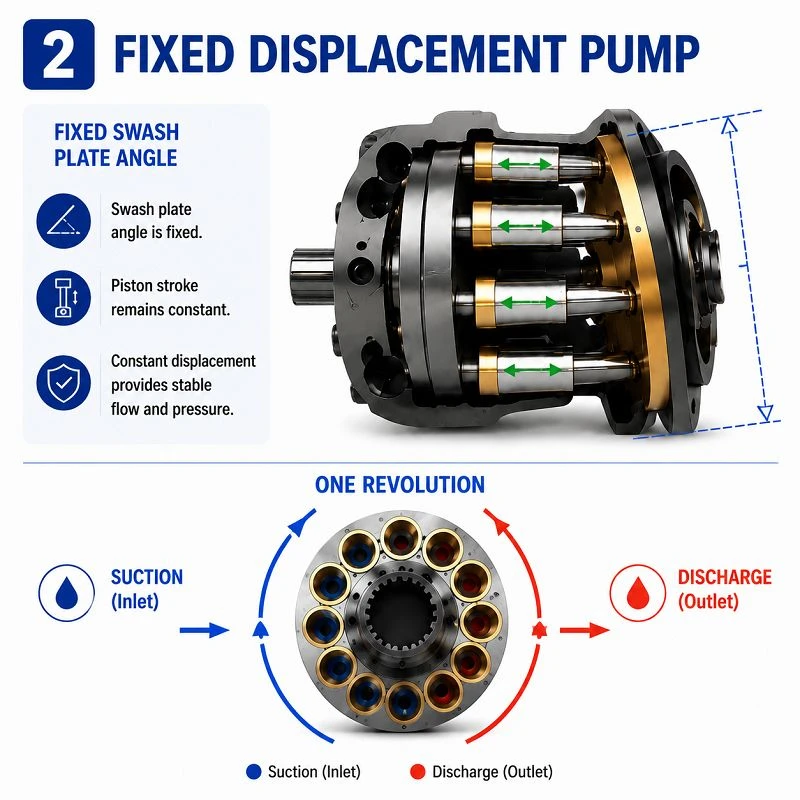

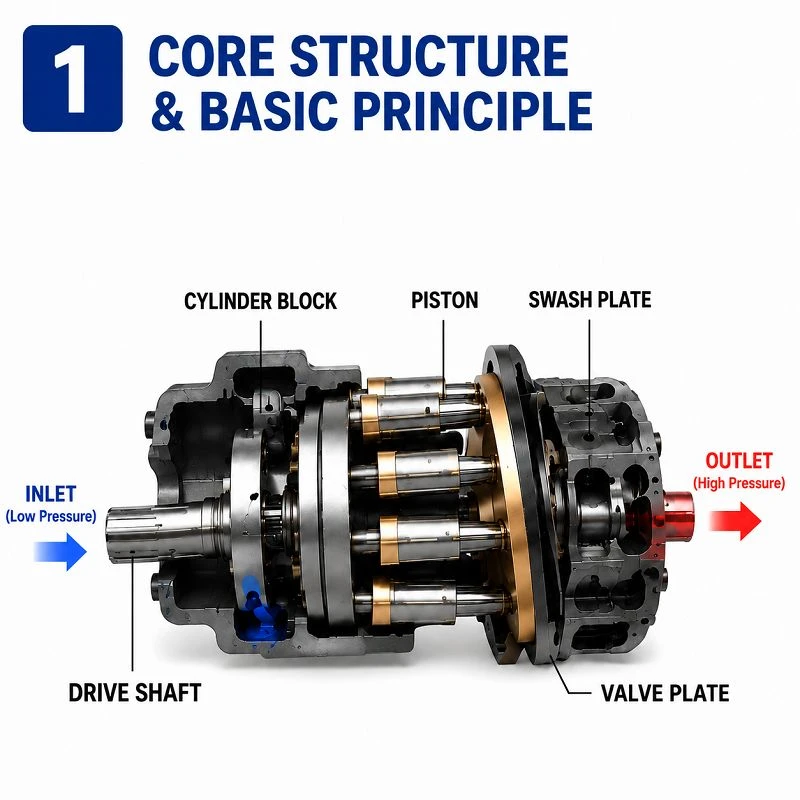

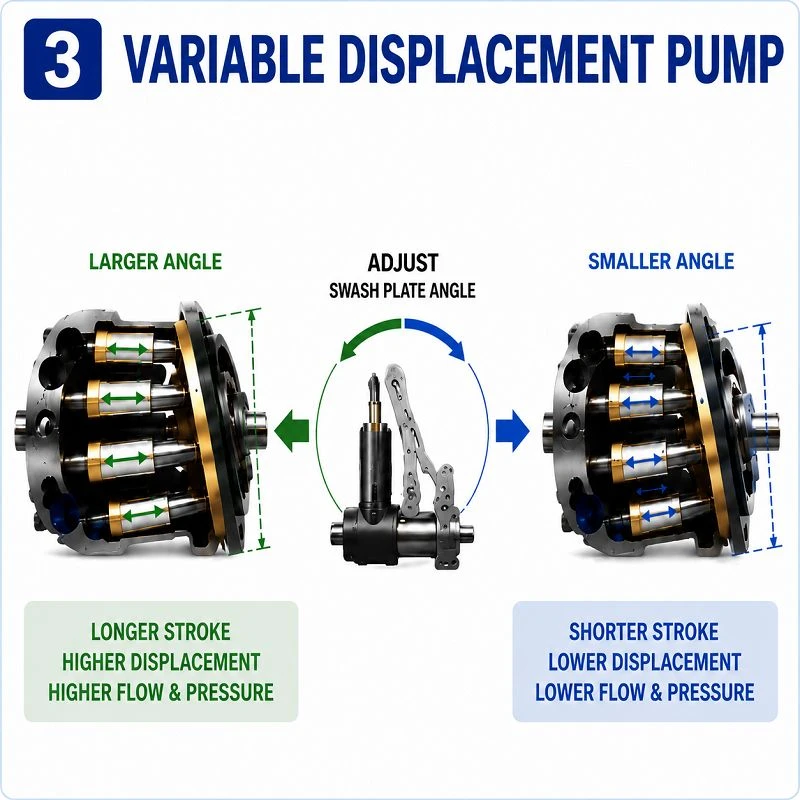

Working Principle
Swash-plate axial piston layout
01
Shaft rotation
→ Cylinder block rotation
→ Piston reciprocating motion
→ Oil suction / oil discharge
02
Swash-plate angle
→ Piston stroke
→ Output flow
03
Larger angle
→ Larger stroke
→ Higher flow
04
Smaller angle
→ Shorter stroke
→ Lower flow
For variable-flow hydraulic systems
For load-changing duty
Model Range
K3V112S
Single-pump format. Straight choice when one main pump section is enough.
K3V112DT
Tandem double-pump layout.
K3V112DP
Parallel double-pump arrangement. Better for some machine layouts.
K3V112DTP
Tandem layout with additional drive-related configuration.
The published 112-size range in the K3V family includes these layout formats.
Applications & Industries
Most K3V112 come from the mobile equipment side, not from light-duty shop hydraulics. This series belongs more naturally on machines that work outside, carry load, dig, move, lift, or cycle under changing pressure.
Earthmoving Equipment
A common fit for open-circuit hydraulic systems on construction machines.
Construction Machinery
Used where the pump has to handle changing load and long work cycles.
Mobile Hydraulic Power Systems
Suitable for main pump duty in equipment that cannot rely on simple fixed-flow output.
Material Handling Equipment
Can also be considered for machines that need strong hydraulic response and repeat operation.
Road and Site Machinery
A workable choice where compactness and hydraulic output both matter.
Mining Equipment
Underground loaders, drill rigs, continuous miners,Compact installation, shock-resistant closed-loop systems
About Us
We are a hydraulic components manufacturer and exporter with over 15 years of experience supplying hydraulic pumps, motors, and valves to industrial customers worldwide.
Our core product lines cover gear pumps, axial piston pumps, vane pumps, and hydraulic motors - both standard catalog models and custom-configured units for OEM applications.
To date we have shipped to 50+ countries across Europe, the Middle East, South and Southeast Asia, and the Americas. Our customer base includes press manufacturers, construction equipment OEMs, marine equipment builders, and maintenance operations managing large hydraulic fleets.
We do not claim to be the cheapest option in the market. We compete on consistent quality, honest specifications, fast delivery on stock items, and responsive technical support - the combination that keeps maintenance managers and procurement engineers coming back for repeat orders.
Certifications
Certificate name
Certificate name
Certificate name
Certificate name
Certificate name
Our Factory & Quipment
cooperative partner
We are looking for a cooperative partner to expand our business.
FAQ
Q: What kind of pump is the K3V112?
A: Open-circuit, variable displacement, swashplate axial piston. Mainly used as the main hydraulic pump on excavators and other mobile equipment.
Q: Does "112" refer to the displacement?
A: Yes - 112 cc per revolution, per pump section.
Q: What's the pressure rating?
A: 34.3 MPa rated, 39.2 MPa peak. That's for the 112 size specifically.
Q: Single pump or double pump - which is available?
A: Both. The 112 range covers K3V112S (single), K3V112DT, K3V112DP, and K3V112DTP (double configurations).
Q: What's the operating speed range?
A: Max self-priming speed is 2360 rpm, absolute max is 2700 rpm.
Q: What hydraulic oil does it take?
A: Standard antiwear hydraulic fluid. Oil temperature range is -20°C to +95°C, viscosity 10–1000 cSt.
Q: Can you do OEM production?
A: Yes. We handle OEM orders - custom nameplate, packaging, and any order-specific requirements. Just let us know what you need upfront.
Q: What do you need from me to send a quote?
A: Model, rotation direction, control type, quantity, application, and destination country. Got a nameplate photo or pump label? Send it over - cuts the back-and-forth in half.
