Guangdong Sheungchak Hydraulic Technology Co., Ltd. is one of the leading manufacturers and suppliers of a6vm in China. With abundant experience, we warmly welcome you to buy high-grade a6vm for sale here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.

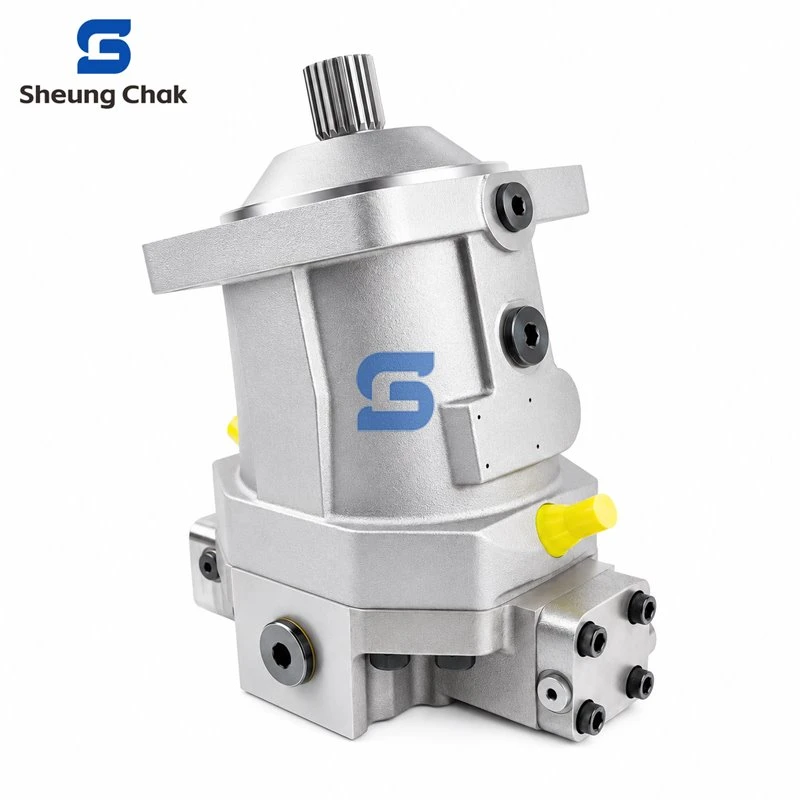

The A6VM is a bent-axis variable axial piston motor. Used in hydrostatic drives. Open circuit or closed circuit. That part depends on the machine, not the motor family itself. The main point is simple: this series is built for jobs that need high torque, wide speed range, and adjustable displacement in one compact unit.
Compared with a simpler fixed motor, the A6VM gives the drive system more room to work. Displacement is not locked. Speed and torque can be matched more cleanly to the operating condition. That is why this type of motor shows up in machines where the load changes a lot and one fixed setting is not enough.
It also has one practical advantage people care about. Size versus output. The body stays relatively compact, but the torque capability is strong for the frame. That matters once space gets tight and the hydraulic side still has real work to do.
Key Features & Benefits
Bent-axis design for compact size and high torque output.
Variable displacement for smoother speed and torque adjustments.
Broad control range, from full displacement to zero as needed.
Strong starting efficiency for stable machine response.
Slow-speed performance is enhanced in high-pressure models.
Flexible control options to fit different systems.
Optional flushing or boost-pressure valve for specific needs.
Counterbalance valve available for certain setups.
[Talk to Our Engineers About Your Application →]
Technical Specifications
The table below is arranged for normal customer selection.
For exact shaft code, flange, port layout, seal material, and rotation, we still confirm by full model code before production.
|
Model |
Displacement (cc/rev) |
Nominal Pressure (bar) |
Peak Pressure (bar) |
Max Speed @ Vg max (rpm) |
Max Flow (L/min) |
Approx. Weight (kg) |
|
A6VM 28 |
28.1 |
400 |
450 |
5300 |
149 |
16 |
|
A6VM 55 |
54.8 |
400 |
450 |
4200 |
230 |
26 |
|
A6VM 80 |
80.0 |
350 |
400 |
3750 |
300 |
34 |
|
A6VM 107 |
107.0 |
400 |
450 |
3300 |
353 |
47 |
|
A6VM 140 |
140.0 |
400 |
450 |
3150 |
441 |
60 |
|
A6VM 160 |
160.0 |
400 |
450 |
3000 |
480 |
64 |
|
A6VM 200 |
200.0 |
400 |
450 |
2750 |
550 |
80 |
|
A6VM 250 |
250.0 |
350 |
400 |
2500 |
625 |
90 |
|
A6VM 355 |
355.0 |
350 |
400 |
2240 |
795 |
170 |
|
A6VM 500 |
500.0 |
350 |
400 |
2000 |
1000 |
210 |
|
A6VM 1000 |
1000.0 |
350 |
400 |
1600 |
1600 |
432 |
Notes:
The size list above follows the Series 63 range shown in your image.
Sizes 28–200 are in the 400 / 450 bar class, except size 80, which is 350 / 400 bar.
Sizes 250–1000 are in the 350 / 400 bar class.
Service port style, flange, shaft end, seal, and control code should still be confirmed by the final model code before order.
[Request Quote for Your Displacement & Control Type →]

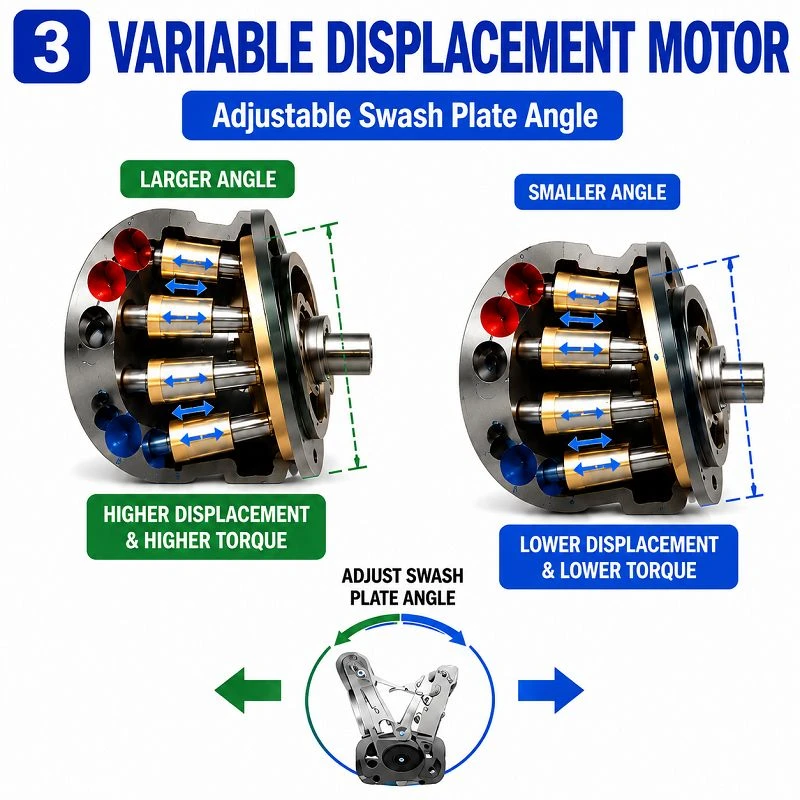

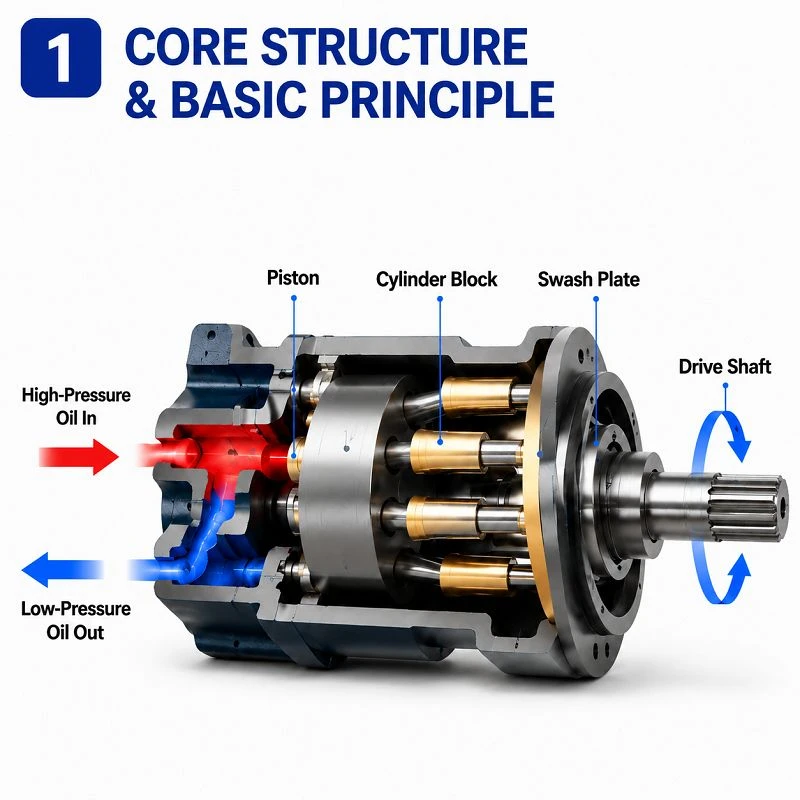

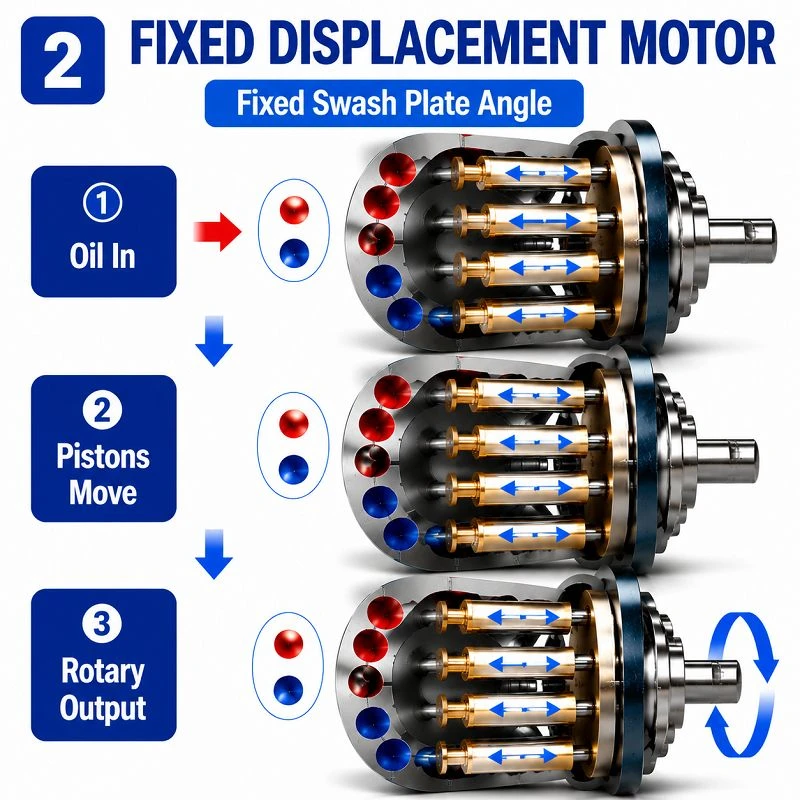

How It Works
The A6VM is a hydraulic motor, not a pump. Oil enters the motor. The piston group reacts through the bent-axis rotary assembly. Hydraulic energy is turned into rotary output.
That is the basic job. Flow comes in. Shaft torque comes out.
Because the displacement is variable, the motor can shift between higher torque and higher speed depending on the operating condition. At larger displacement, torque goes up and speed drops. Reduce displacement, and the motor can run faster. Simple idea. Very useful in hydrostatic drives.
Model Range
Small Frame Sizes
A6VM 28 / 55 / 80
Used where space is tighter but the drive still needs variable displacement and solid torque.
Mid Sizes
A6VM 107 / 140 / 160 / 200
This is where a lot of machine builders start. Good balance. Not too small. Not already in the oversized range either.
Large Sizes
A6VM 250 / 355 / 500
For heavier hydrostatic drives. More displacement. More output. More motor.
Extra-Large Size
A6VM 1000
This one is for serious drive duty. Not a light machine option.
The Series 63 size band is exactly the one you marked in the image: 28, 55, 80, 107, 140, 160, 200, 250, 355, 500, 1000.
Applications & Industries
The A6VM Series 63 is mainly used in hydrostatic drive work. That is the natural home for it.
Travel drives. Winch drives. Rotary functions. Other heavy drive sections where torque matters.
Good when speed and load keep changing during operation.
Useful on machines that do not stay in one working condition all day.
Can be used in drive functions where controllable speed and strong low-end pull are both important.
Not limited to mobile machines. It also fits fixed installations that need a variable hydraulic motor.
The series is built around hydrostatic drive use, with a wide control range and strong torque behavior across the size band.
About Us
Sheungchak is an OEM hydraulic manufacturer focused on hydraulic motors, pumps, valves, and related spare parts. We produce our own products and support customers from model confirmation to shipment.
Most buyers are looking for the same few things.
Correct model. Stable quality. No back-and-forth on basic details. Delivery that can actually be followed.
That is how we handle the A6VM Series 63 too.
OEM production
Nameplate customization
Packing adjustment
Drawing or sample confirmation
Export shipment suppor
Years in business
20+ years
Main products
Axial piston pumps / hydraulic motors / valves / spare parts
Main markets
Europe / South America / Middle East / Southeast Asia / Africa
Main strengths
OEM production / technical support / stable lead time / export service
Certifications
Certificate name
Certificate name
Certificate name
Certificate name
Certificate name

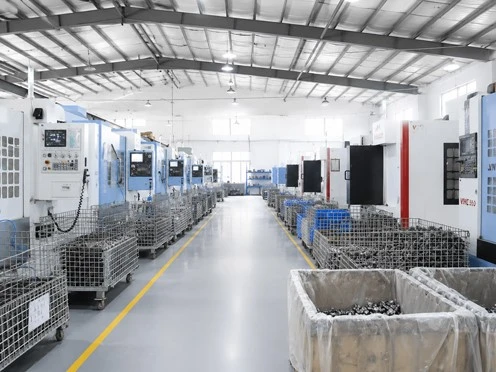

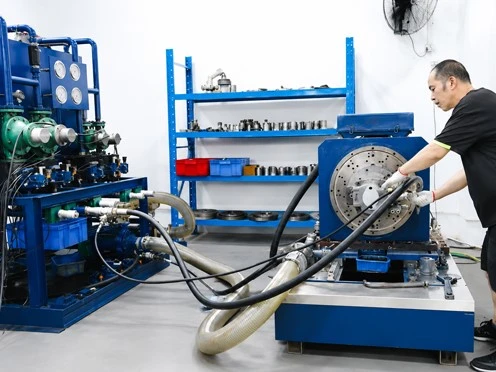

Our Factory & Quipment
cooperative partner
We are looking for a cooperative partner to expand our business.
FAQ Display Content
1) What is the A6VM Series 63?
It is a variable axial piston motor in bent-axis design. Used in open and closed hydraulic circuits.
2) What sizes are available in Series 63?
The standard size band is 28, 55, 80, 107, 140, 160, 200, 250, 355, 500, and 1000.
3) Can the displacement go down to zero?
Yes. The standard setting range allows the motor to move from Vg max down to 0. For some larger sizes, the minimum setting can also be configured differently.
4) What pressure can the A6VM 63 handle?
Sizes 28–200 are in the 400 / 450 bar class, except size 80, which is 350 / 400 bar. Sizes 250–1000 are in the 350 / 400 bar class.
5) What control types are available?
This series supports several control forms, including hydraulic control, electric control, two-position control, and automatic high-pressure related control.
6) Is the A6VM a pump?
No. It is a hydraulic motor. It converts hydraulic flow into rotary output torque.
7) Can you supply flushing valve or other options?
Yes. Depending on the version, the motor can be supplied with flushing / boost-pressure valve, speed sensor preparation, and different shaft or flange configurations.
8) What do you need before quotation?
Please send the size, control type, shaft style, flange, rotation, quantity, application, and destination country. A nameplate photo or old code helps a lot.
