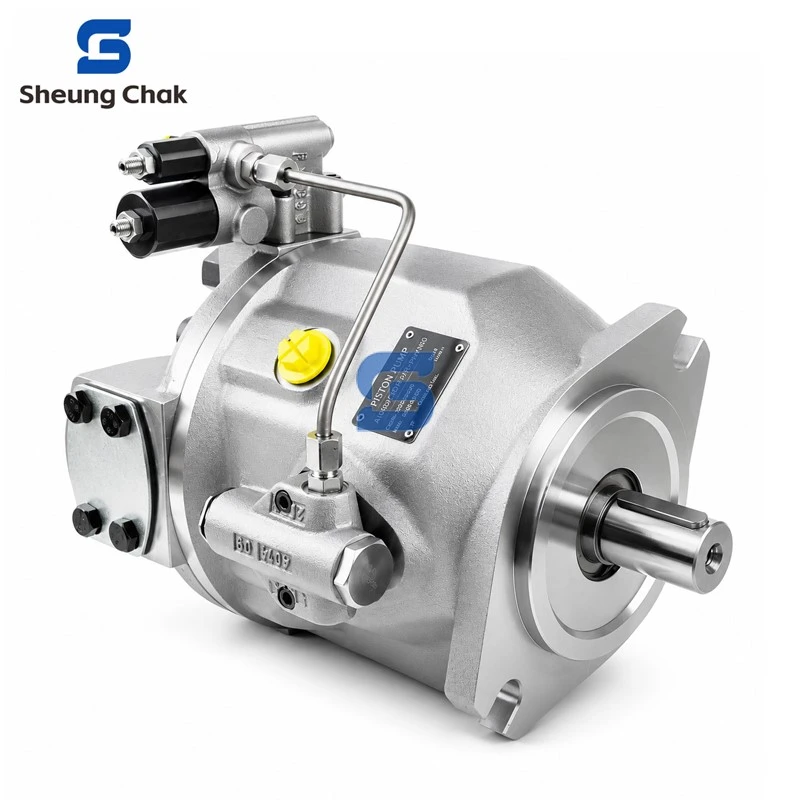

A10VSO 31 Series
Axial piston variable pump
Swashplate design
Open-circuit hydraulic system
Application
Hydraulic power units
Forming equipment
Machine tools
Hydraulic presses
Continuous-duty hydraulic systems
Function
Flow adjustment by swashplate angle
Output matched to system demand
Features
Compact structure
Stable pressure performance
Multiple control options
Key Features & Benefits
280 bar continuous, 350 bar peak - handles serious duty cycles without having to derate the system
Variable flow on demand - swashplate adjusts automatically so the pump only works as hard as the load requires; real energy savings in real-world use
Four control options - Pressure controller (DR), Pressure controller, remote controlled (DRG), Pressure and flow controller (DFR/DFR1), Pressure, flow and power control (DFLR), Electro-hydraulic pressure control (ED), Electro-hydraulic pressure control(ER); the right one depends on your system, not ours
Wide displacement range - 10 to 140 cc/rev in one product family; easier to standardize spare parts across multiple machine sizes
Low pulsation - odd-number piston configuration cuts pressure ripple, quieter than gear pumps at similar pressure ratings
Speed range 400–3600 rpm - works with diesel engines, AC/DC electric motors, and PTO drives depending on displacement
Seal choice - standard NBR for mineral oil, FKM available for high-temperature or fire-resistant fluid applications
Compact for its output class - the variable displacement architecture delivers more usable power per kilogram than a fixed gear pump running the same circuit
[Talk to Our Engineers About Your Application →]
Technical Specifications
|
Model |
Displacement (cc/rev) |
Nominal Pressure (bar) |
Max Pressure (bar) |
Speed Range (rpm) |
Flow @1500 rpm (L/min) |
Port Type |
Approx. Weight (kg) |
|
A10VSO 18 |
18 |
280 |
350 |
800–3300 |
27 |
Standard hydraulic ports |
12 |
|
A10VSO 28 |
28 |
280 |
350 |
800–3000 |
42 |
Standard hydraulic ports |
15 |
|
A10VSO 45 |
45 |
280 |
350 |
700–2600 |
68 |
Standard hydraulic ports |
21 |
|
A10VSO 71 |
71 |
280 |
350 |
600–2200 |
107 |
Standard hydraulic ports |
33 |
|
A10VSO 100 |
100 |
280 |
350 |
600–2000 |
150 |
Standard hydraulic ports |
45 |
|
A10VSO 140 |
140 |
280 |
350 |
600–1800 |
210 |
Standard hydraulic ports |
68 |
Notes:
Exact dimensions, shaft type, flange type, control mode, and port details can vary by model configuration.
Please confirm the full model code or application requirement before order.
Customized configurations are available based on project demand.
[Request Quote for Your Displacement & Control Type →]
How It Works

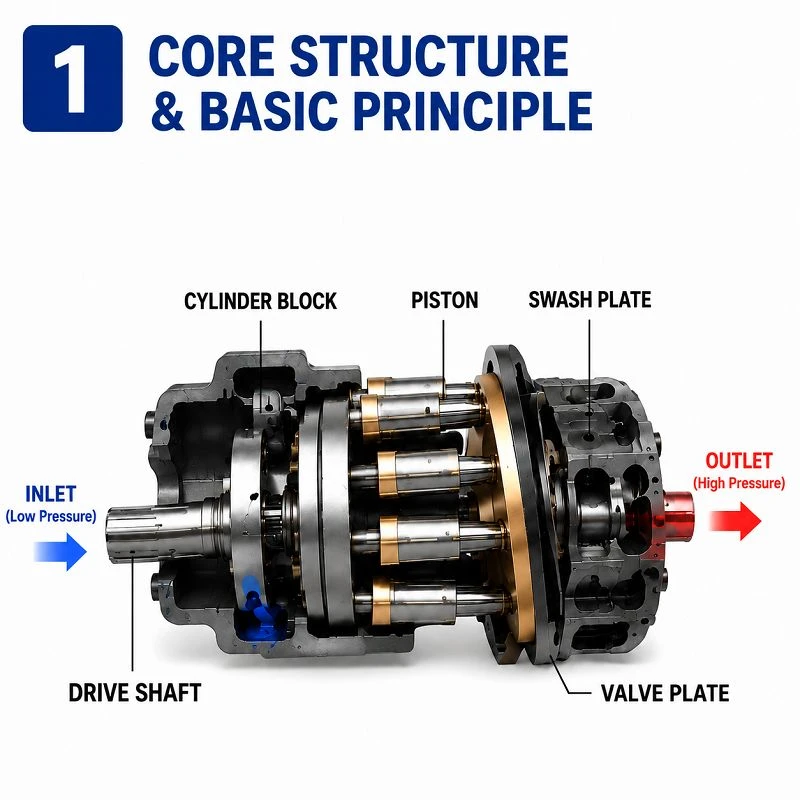

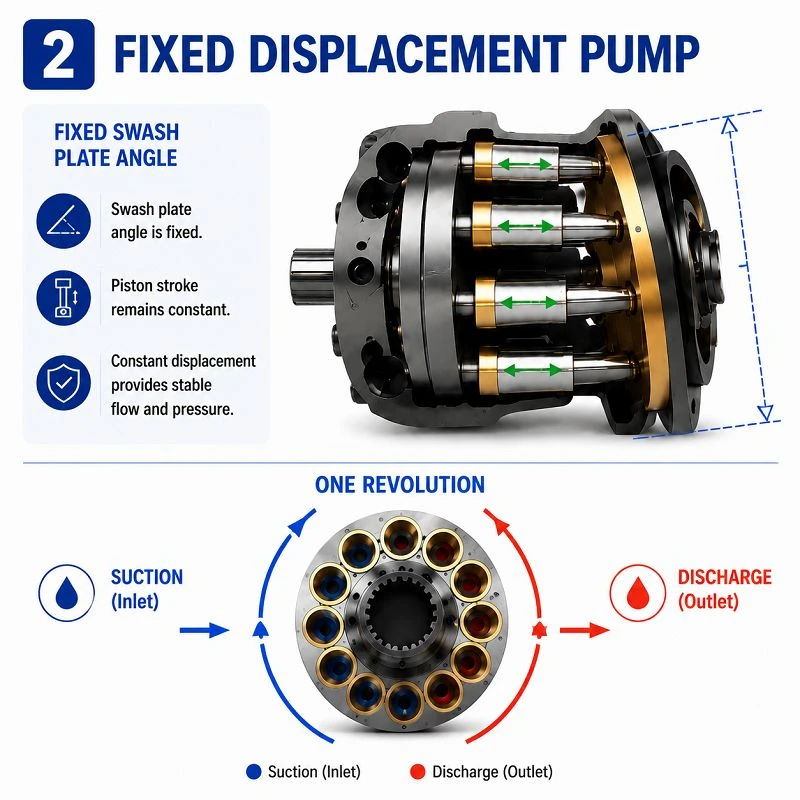

The A10VSO works through a swashplate axial piston structure. When the drive shaft rotates, it drives the cylinder block and pistons to move in sequence. The reciprocating motion of the pistons creates suction and discharge, allowing hydraulic oil to flow through the system.

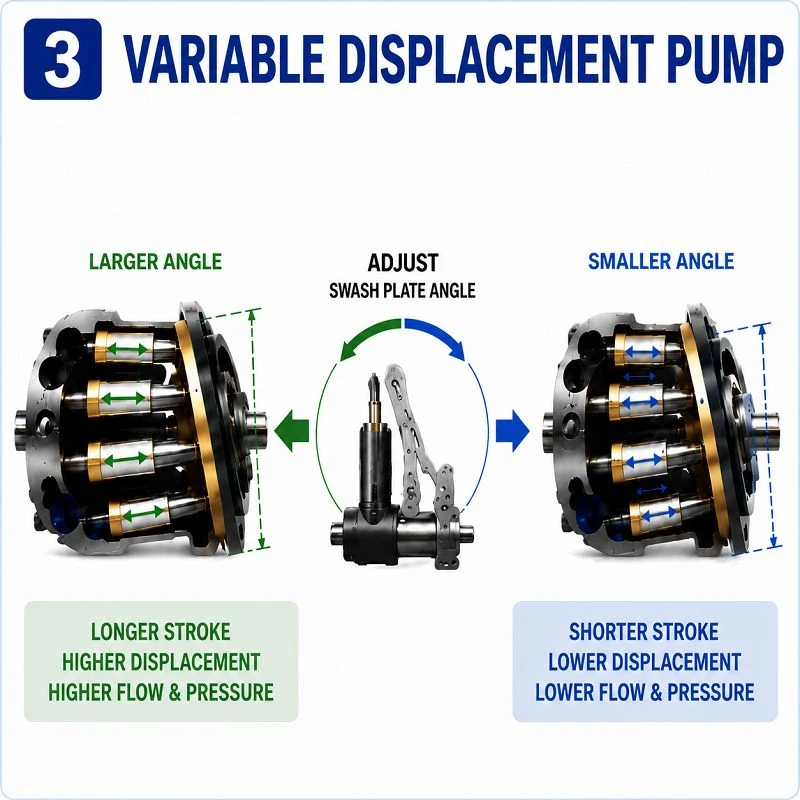

What makes this pump different is the variable swashplate angle. When the angle changes, piston stroke changes too. That directly affects displacement and output flow. Bigger angle means more flow. Smaller angle means less. Simple idea, but very useful in real hydraulic systems.
This setup allows the pump to deliver more precise hydraulic output instead of running at one fixed level all the time. For machines with changing load conditions, that makes a real difference.
Model Range
A10VSO18
Usually chosen for smaller hydraulic setups. Good when installation space is tight and the system does not need a large flow rate.
A10VSO28
A solid mid-size option for general industrial use. It gives a nice balance between output, size, and installation flexibility.
A10VSO45
This model shows up a lot in standard hydraulic applications. Presses, tooling equipment, power packs - it fits into that kind of job quite naturally.
A10VSO71
A better choice once the flow demand starts going up. It is commonly used in larger systems that run longer hours and carry more load.
A10VSO100
For heavier-duty hydraulic units, this size makes more sense. It is intended for applications where steady, high-output performance matters day after day.
Custom OEM Options
Not every project follows a standard spec. We can adjust shaft ends, mounting flanges, seal materials, control forms, and nameplate details based on what your system actually needs.
Applications & Industries
The A10VSO is mostly chosen for hydraulic systems where the flow cannot stay the same all the time. Different steps, different load, different output. That kind of job.
Hydraulic Power Units
For hydraulic stations and power packs. Especially where the machine does not run on one fixed flow all day.
Hydraulic Presses
Often used on presses that need stable pressure through repeated cycles.
Machine Tools
Fits machine tool hydraulic circuits that need consistent response during production.
Industrial Automation Equipment
A workable option for automated equipment with frequent motion changes and shifting load.
Forming and Processing Machinery
Used on machines that stay in operation for long periods and need the hydraulic side to remain steady.
Material Handling Equipment
Can be applied to lifting, positioning, feeding, and other controlled hydraulic movements.
About Us
Sheungchak is an OEM hydraulic manufacturer focused on pumps, motors, valves, and related spare parts. We produce our own products and support customers from model confirmation through shipment.
Most buyers are really checking a few basic things.
Model right or not. Quality stable or not. Lead time clear or not.
That is how we handle A10VSO Series 31 orders too.
OEM production
Nameplate customization
Packing adjustment
Drawing or sample confirmation
Export shipment suppor
Years in business
20+ years
Main products
Axial piston pumps / hydraulic motors / valves / spare parts
Main markets
Europe / South America / Middle East / Southeast Asia / Africa
Main strengths
OEM production / technical support / stable lead time / export service
Certifications
Certificate name
Certificate name
Certificate name
Certificate name
Certificate name
Our Factory & Quipment
cooperative partner
We are looking for a cooperative partner to expand our business.
FAQ
1) What is the A10VSO hydraulic pump used for?
Mostly for open-circuit hydraulic systems. Common setups include power units, presses, machine tools, automation equipment, and forming machinery.
2) Is the A10VSO a variable displacement pump?
It is. The pump uses a swashplate axial piston design, so the output can be adjusted to suit the system.
3) What pressure range can it handle?
For standard versions, continuous working pressure is usually around 280 bar. Peak pressure can reach 350 bar, depending on model and actual operating conditions.
4) What displacement options are available?
The common sizes are 18cc, 28cc, 45cc, 71cc, 100cc, and 140cc. Other versions can be checked case by case.
5) Are different control types available?
Yes, depending on the application. Different control configurations can be arranged to match the hydraulic circuit.
6) Can it be used in tandem pump setups?
Some versions can. If through-drive is required, that should be confirmed when selecting the model.
7) Do you offer OEM customization?
Yes. Nameplate, product marking, packing, and some technical details can be customized based on the order.
8) What do you need for a quotation?
Model, displacement, control type, quantity, application, and destination country. If you have a nameplate photo or drawing, send that too.
