Product Overview

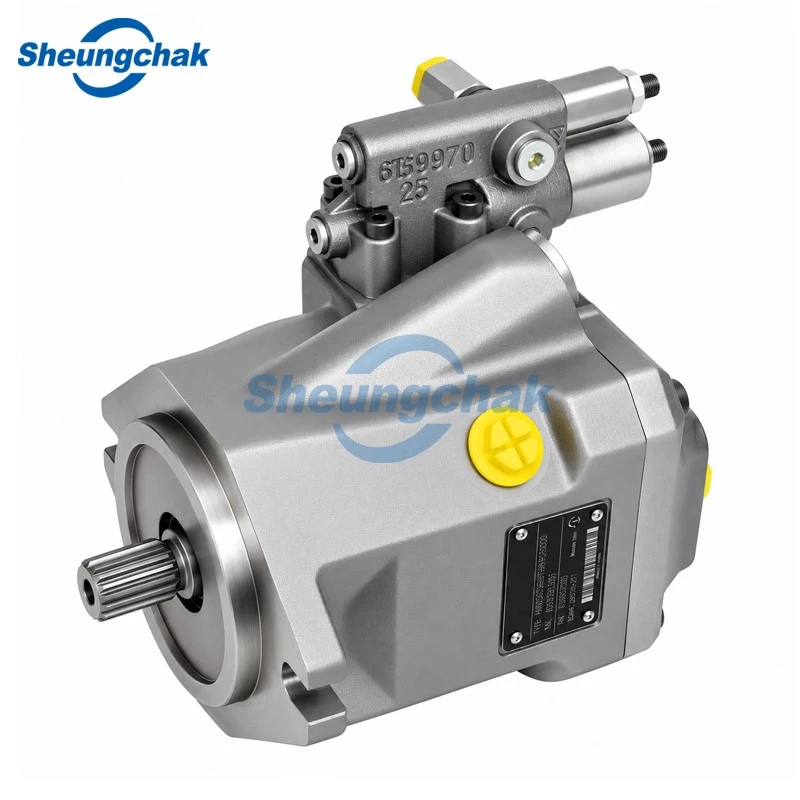

A10VO is a variable swashplate piston pump made for open-circuit hydraulics. The drive shaft turns the cylinder block, the pistons follow the swashplate angle, and oil is pushed out toward the working circuit. Change the swashplate position and the pump changes displacement. So the machine does not have to live with one fixed flow every time the shaft turns.
We mainly build three versions: Series 31, Series 52 and Series 53. Series 31 covers the higher pressure side of this group, with 280 bar nominal and 350 bar maximum pressure. Series 52 and 53 sit at 250 / 315 bar and cover a slightly different group of frame sizes. Series 53 also gives more room on the control side, including proportional and electro-hydraulic arrangements on selected builds. Series 31 covers sizes 18–100 in the current standard range, with size 140 also existing as a larger frame; Series 52/53 together cover sizes 10–100.
One point worth clearing up: A10VO and A10VSO should not be treated as the same pump name. The basic open-circuit swashplate principle is closely related, and older Series 31 material can place both families around the same platform. That still does not make the complete order codes interchangeable. A10VO has its own mobile and machine-oriented programs, including Series 52 and 53, while A10VSO has developed mainly through industrial hydraulic programs. Shaft, mounting, controller and port arrangement still decide whether a replacement actually fits.
For us, that means one thing: we do not quote an A10VO by displacement alone. A photo saying "71" is not enough. Series number first. Then controller, rotation, shaft, mounting face and port plate.
Key Features & Benefits
Variable flow from the swashplate
Pump delivery can move up or down with displacement instead of staying at one fixed output.
Three series for different machine builds
Series 31, 52 and 53 give more choice on pressure class, frame size and control arrangement.
Compact medium-pressure package
Good output from a relatively small pump body makes it useful where installation space is already crowded.
Useful suction behavior
The rotary group works well at practical drive speeds when the inlet pipe and tank layout are sized correctly.
Several control routes
Pressure compensation, load sensing, power control and electrical adjustment are available across different versions.
Through-drive builds
Another pump can be added behind selected units, saving the need for a separate splitter drive in some machines.
Standard and high-speed choices
Series 31 includes high-speed versions on selected frame sizes where extra flow is needed from the same displacement.
Full-code OEM matching
SheungChak checks series, shaft, controller, rotation and ports together before the unit goes into production.
Series 31 includes hydraulic and electro-hydraulic control choices such as DG, DR, DFR/DFR1, DRG and DFLR, while Series 52/53 add combinations including power and electro-proportional controls on applicable versions.
[Talk to Our Engineers About Your Application →]
Technical Specifications
A10VO Series 31
Series 31 is the main choice here when the application needs the 280 / 350 bar pressure class.
|
Model |
Displacement |
Nominal / Max. Pressure |
Max. Speed at Vg Max |
Reference Max. Flow |
Port Style |
Approx. Weight |
|
A10VO18 |
18 cc/rev |
280 / 350 bar |
3,300 rpm |
59 L/min |
SAE flange, frame-specific |
12.9 kg |
|
A10VO28 |
28 cc/rev |
280 / 350 bar |
3,000 rpm |
84 L/min |
SAE flange, frame-specific |
18 kg |
|
A10VO45 |
45 cc/rev |
280 / 350 bar |
2,600 rpm |
117 L/min |
SAE flange, frame-specific |
23.5 kg |
|
A10VO71 |
71 cc/rev |
280 / 350 bar |
2,200 rpm |
156 L/min |
SAE flange, frame-specific |
35.2 kg |
|
A10VO88 |
88 cc/rev |
280 / 350 bar |
2,100 rpm |
185 L/min |
SAE flange, frame-specific |
35.2 kg |
|
A10VO100 |
100 cc/rev |
280 / 350 bar |
2,000 rpm |
200 L/min |
SAE flange, frame-specific |
49.5 kg |
|
A10VO140 |
140 cc/rev |
280 / 350 bar |
1,800 rpm |
252 L/min |
SAE flange, frame-specific |
65.4 kg |
Flow figures above are theoretical reference values at maximum displacement and the listed nominal speed. Selected 45, 71 and 100 frames are also available in high-speed versions; earlier Series 31 programs include a high-speed 140 configuration as well.
A10VO Series 52
Series 52 uses the 250 / 315 bar pressure class. The size lineup is different from Series 31.
|
Model |
Displacement |
Nominal / Max. Pressure |
Max. Speed at Vg Max |
Reference Max. Flow |
Port Style |
Approx. Weight |
|
A10VO10 |
10.5 cc/rev |
250 / 315 bar |
3,600 rpm |
37 L/min |
SAE / metric arrangement by build |
8 kg |
|
A10VO28 |
28 cc/rev |
250 / 315 bar |
3,000 rpm |
84 L/min |
SAE flange |
15 kg |
|
A10VO45 |
45 cc/rev |
250 / 315 bar |
2,600 rpm |
117 L/min |
SAE flange |
18 kg |
|
A10VO60 |
60 cc/rev |
250 / 315 bar |
2,700 rpm |
162 L/min |
SAE flange |
22 kg |
|
A10VO85 |
85 cc/rev |
250 / 315 bar |
2,500 rpm |
212 L/min |
SAE flange |
36 kg |
Series 52 allows a mix of ISO- and SAE-oriented mounting arrangements depending on the frame and code. Through-drive versions are also part of the range.
A10VO Series 53
Series 53 stays in the same 250 / 315 bar pressure class but covers another size spread and a wider group of control combinations.
|
Model |
Displacement |
Nominal / Max. Pressure |
Max. Speed at Vg Max |
Reference Max. Flow |
Port Style |
Approx. Weight |
|
A10VO18 |
18 cc/rev |
250 / 315 bar |
3,300 rpm |
59 L/min |
SAE flange |
11.5 kg |
|
A10VO28 |
28 cc/rev |
250 / 315 bar |
3,000 rpm |
84 L/min |
SAE flange |
15 kg |
|
A10VO45 |
45 cc/rev |
250 / 315 bar |
2,600 rpm |
117 L/min |
SAE flange |
18 kg |
|
A10VO63 |
63 cc/rev |
250 / 315 bar |
2,600 rpm |
163 L/min |
SAE flange |
22 kg |
|
A10VO72 |
72 cc/rev |
250 / 315 bar |
2,600 rpm |
187 L/min |
SAE flange |
22 kg |
|
A10VO85 |
85 cc/rev |
250 / 315 bar |
2,500 rpm |
212 L/min |
SAE flange |
36 kg |
|
A10VO100 |
100 cc/rev |
250 / 315 bar |
2,300 rpm |
230 L/min |
SAE flange |
36 kg |
Series 53 includes hydraulic pressure/flow controls along with power-control and electro-proportional options such as EP and EK configurations on suitable builds.
Before We Quote
The useful information is:
Full old pump code
Series 31, 52 or 53
Displacement
Controller code
Clockwise or counter-clockwise rotation
Shaft type
Mounting flange
Rear or side working ports
Through-drive requirement
Working pressure and drive rpm
[Request Quote for Your Displacement & Control Type →]
How It Works
1) The shaft starts the pumping cycle
The shaft turns the cylinder block. As it rotates, the pistons follow the swashplate and move back and forth inside the bores.
That movement draws oil in and pushes it out again.
2) Oil moves through the pump
When a piston moves outward, the chamber fills with oil from the inlet side. As it comes back, the oil is forced toward the pressure port and into the hydraulic system.
Pump flow depends mainly on displacement and shaft speed.
3) Flow changes with the swashplate
The swashplate does not have to stay at one angle.
Reduce the angle and piston travel becomes shorter, so the pump delivers less oil. Increase it and flow goes back up.
Model Range
Series 31
|
Range |
Models |
Pressure Class |
Typical Direction |
|
Small |
A10VO18 / 28 |
280 / 350 bar |
Compact mobile and auxiliary hydraulic systems |
|
Medium |
A10VO45 / 71 |
280 / 350 bar |
Construction, agricultural and handling machinery |
|
Upper medium |
A10VO88 / 100 |
280 / 350 bar |
Larger open-circuit machine hydraulics |
|
Large |
A10VO140 |
280 / 350 bar |
Higher-flow applications |
Series 52
|
Models |
Main Point |
|
A10VO10 / 28 |
Smaller pump builds |
|
A10VO45 / 60 |
Mid-size machine hydraulics |
|
A10VO85 |
Higher flow within Series 52 |
Series 52 uses 250 bar nominal and 315 bar maximum pressure. It also has a slightly different mounting and size program from Series 53.
Series 53
|
Models |
Main Point |
|
A10VO18 / 28 / 45 |
Smaller and medium machine circuits |
|
A10VO63 / 72 |
Mid-range flow requirements |
|
A10VO85 / 100 |
Larger Series 53 systems |
Series 53 keeps the 250 / 315 bar working class but adds more control choices around electro-proportional and power-related operation.
A10VO vs A10VSO - Don't Order by Name Alone
|
Item |
A10VO |
A10VSO |
|
Circuit |
Open circuit |
Open circuit |
|
Basic design |
Variable swashplate piston pump |
Variable swashplate piston pump |
|
Key programs on this page |
Series 31, 52, 53 |
Separate industrial-oriented programs |
|
Series 52 / 53 focus |
Yes |
Not treated here as an A10VO substitute |
|
Replacement rule |
Check full A10VO code |
Check full A10VSO code |
The two names share a lot of basic pump architecture, particularly around older A10 Series 31 products. That is exactly why mistakes happen. For replacement work, we treat the complete code as the deciding point rather than assuming an A10VO and A10VSO with similar displacement are automatically interchangeable.
Applications & Industries
|
Industry |
Equipment Examples |
What the Pump Does |
|
Construction Machinery |
Excavators, graders, drilling machines |
Feeds open-circuit work hydraulics while allowing flow to change with machine demand |
|
Agricultural Machinery |
Harvesters, sprayers, self-propelled farm equipment |
Supplies implement and auxiliary functions without staying at full displacement all the time |
|
Material Handling |
Mobile handlers, forklifts, lifting equipment |
Provides variable flow for lifting, steering or working functions |
|
Road Machinery |
Pavers, graders, maintenance equipment |
Runs work circuits that see different flow demand through the operating cycle |
|
Forestry Equipment |
Harvesters, carriers, forestry attachments |
Handles changing hydraulic loads in compact off-highway machinery |
|
Industrial & Special Machines |
Power packs, test equipment, custom mobile units |
Gives the system adjustable open-circuit oil delivery from one pump platform |
Construction Machinery
Agricultural & Forestry
Material Handling
Road Machinery
Forestry Equipment
Industrial & Special Machines
About Us
SheungChak is an independent OEM manufacturer of hydraulic piston pumps and motors. Our A10VO products are made and supplied through our own production program.
Most replacement jobs start with a code. Then the pictures arrive. Sometimes the code says Series 31 but the controller in the photo does not match. Sometimes the customer only has the shaft side. We would rather stop and check than ship a pump that bolts on but cannot work with the machine control.
Factory experience: 20+ years
Main products: Variable piston pumps, fixed piston pumps, piston motors and hydraulic components
Main markets: Europe / South America / Middle East / Southeast Asia / Africa
MOQ: 1 PC
Sample supply: 1 PC
Normal lead time: 1-3 days
OEM service: Code checking, drawing review, sample orders and batch production.
Certifications
Certificate name
Certificate name
Certificate name
Certificate name
Certificate name
Our Factory & Quipment
cooperative partner
We are looking for a cooperative partner to expand our business.
FAQ Display Content
1) Is A10VO a fixed or variable pump?
It is a variable pump. Changing the swashplate angle changes the piston stroke, so flow can go up or down while the shaft keeps running.
2) How are Series 31, 52 and 53 different?
Series 31 has the higher pressure class, at 280 bar nominal and 350 bar maximum. Series 52 and 53 are rated at 250/315 bar. The available sizes and control options also differ between the three series.
3) Is A10VO the same as A10VSO?
No. The working principle is similar, especially on some Series 31 models, but the order codes and product ranges are different. We do not recommend matching them by displacement only.
4) Which control should I use?
Start with what the machine needs to control. DR is mainly for pressure. DFR adds flow control. DFLR can also limit power on suitable Series 31 pumps. Some Series 53 versions offer electrical proportional control as well.
5) Can I add another pump behind it?
On some versions, yes. Through-drive options are available, but the second pump still has to match the shaft torque and mounting limits.
6) Does A10VO need a case-drain line?
Yes. The housing needs a drain line back to tank, with as little back pressure as possible. The pump case should also be filled before startup.
7) How clean should the oil be?
For Series 52 and 53, ISO 4406 20/18/15 is a useful minimum target. Better filtration is needed when the oil runs hot or viscosity drops.
8) What information do you need for a quote?
The full pump code is best. If that is not available, send the nameplate, series, shaft, ports, mounting face, rotation, control type, working pressure, speed and quantity.
