Guangdong Sheungchak Hydraulic Technology Co., Ltd. is one of the leading manufacturers and suppliers of a10vo45 in China. With abundant experience, we warmly welcome you to buy high-grade a10vo45 for sale here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.

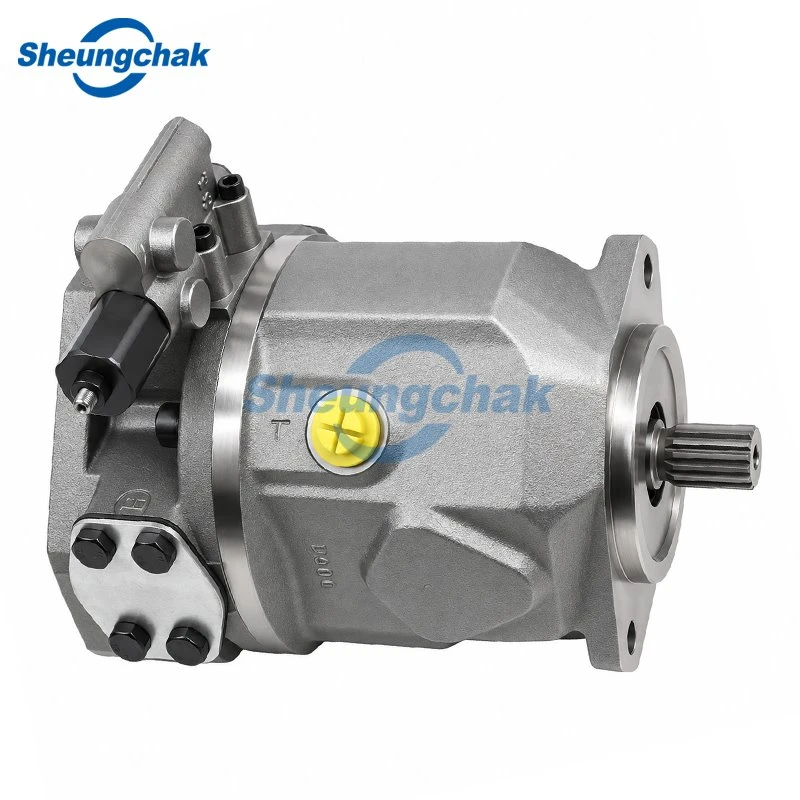

A10VO45 is a 45 cc/rev pump for open-circuit systems. Its output changes with the swashplate angle, so the pump does not stay at one fixed delivery all the time. Smaller angle, less flow. Move it back and the output rises again.

The series number matters more than many buyers expect. Series 31, 52 and 53 can all appear under the A10VO45 name, but they are not built the same. Series 31 works in the 280/350 bar pressure range. Series 52 and 53 use 250/315 bar. There is also a high-speed Series 31 version for size 45, reaching 3,000 rpm and about 135 L/min theoretical flow. The standard version is lower, around 2,600 rpm and 117 L/min.

Size 45 is common on medium-duty machines where a larger pump would be unnecessary. Construction equipment, farm machinery, handling machines, road equipment and small industrial power units are typical examples.

For a replacement order, the model name alone is not enough. We normally check the series, controller, shaft, rotation and port position before production.

Key Features & Benefits

Output that follows demand

The swashplate changes pump flow while the drive motor keeps running.

45 cc/rev size

A practical middle size for machines that need solid flow without using a much larger pump.

Pressure varies by series

Series 31 uses the 280/350 bar range. Series 52 and 53 are rated at 250/315 bar.

Faster Series 31 builds

Some size-45 versions can reach 3,000 rpm, giving more flow from the same displacement.

Control options

Depending on the series, the pump can be set up for pressure, flow, power or electro-hydraulic control.

Through-drive versions

A second pump can be added on selected builds, provided the coupling and shaft load are within limits.

Inlet conditions still matter

Good suction piping helps the pump run at useful speed without stepping up to a larger frame.

Matched by full pump code

SheungChak checks the controller, shaft, port plate and rotation before production. The 45 cc displacement is only one part of the match.

[Talk to Our Engineers About Your Application →]

Technical Specifications

A10VO45 Series Comparison

The standard Series 31 size 45 runs at 2,600 rpm and gives 117 L/min theoretical flow at full displacement. Its high-speed version goes to 3,000 rpm and 135 L/min. Series 52/53 size 45 uses the 250/315 bar pressure class, with 2,600 rpm and 117 L/min as the standard full-displacement figures.

Specification	Series 31 Standard	Series 31 High Speed	Series 52	Series 53
Displacement	45 cc/rev	45 cc/rev	45 cc/rev	45 cc/rev
Circuit	Open	Open	Open	Open
Nominal pressure	280 bar	280 bar	250 bar	250 bar
Maximum pressure	350 bar	350 bar	315 bar	315 bar
Max. speed at full displacement	2,600 rpm	3,000 rpm	2,600 rpm	2,600 rpm
Theoretical flow at max. speed	117 L/min	135 L/min	117 L/min	117 L/min
Flow at 1,500 rpm	Approx. 68 L/min	Approx. 68 L/min	Approx. 68 L/min	Approx. 68 L/min
Pressure port B	Common SAE 1 in	Common SAE 1 in	SAE 1 in	SAE 1 in
Suction port S	Common SAE 1½ in	Common SAE 1½ in	SAE 1½ in	SAE 1½ in
Case drain	7/8-14 UNF on common builds	Same	7/8-14 UNF	7/8-14 UNF
Pilot port X	7/16-20 UNF on common builds	Same	7/16-20 UNF	7/16-20 UNF
Approx. weight	23.5 kg	23.5 kg	18 kg	18 kg
Through drive	By configuration	By configuration	By configuration	By configuration

The common Series 52/53 size-45 SAE layout uses a 1-inch pressure port, 1½-inch suction port, 7/8-14 UNF drain and 7/16-20 UNF pilot connection. Port plates and threaded-port versions can change the final interface, so the approved production drawing should still be checked before installation.

Series 31

This is normally the first direction when the machine needs the higher pressure class. Common control codes include pressure control and pressure/flow arrangements, with power-related control available on selected configurations.

The high-speed size 45 is worth mentioning separately. Same basic displacement. Different speed window. At 3,000 rpm, theoretical output rises to roughly 135 L/min. That does not mean every old Series 31 pump can simply be run faster-the actual build and inlet conditions still matter.

Series 52

Series 52 drops the nominal pressure to 250 bar but keeps the familiar 45 cc/rev frame. Standard full-displacement speed is 2,600 rpm, giving about 117 L/min theoretical flow.

Pressure control, remote pressure control and pressure/flow control builds are common. Through-drive arrangements are also possible.

Series 53

Series 53 shares much of the basic size-45 hydraulic performance with Series 52. The control side is where enquiries often get more specific.

Depending on the complete build, the wider 52/53 program includes pressure and flow control, power control, electro-hydraulic pressure control and electro-proportional displacement arrangements. That can make the controller housing look quite different even when the pumping group is still size 45.

Before We Start Production

Please send:

Full old pump code

Series 31, 52 or 53

Controller code

Clockwise or counter-clockwise rotation

Shaft type

Mounting flange

Pressure and suction port position

Through-drive requirement

Working pressure

Drive rpm

Machine application

Quantity.

[Request Quote for Your Displacement & Control Type →]

How It Works

1) The shaft gets the piston group moving

The engine or electric motor turns the pump shaft. The cylinder block rotates with it. Inside the block, the pistons follow the angled swashplate and move back and forth as the shaft turns. That is the basic pumping stroke.

2) Oil comes in at the suction side

As piston chamber volume increases, oil is pulled into the pump through port S. A moment later, the piston moves back into its bore and pushes that oil toward pressure port B. On a standard 45 cc pump running at 2,600 rpm, the theoretical full-displacement flow is about 117 L/min. Real delivery will be a little lower once internal losses are included.

3) The controller changes how much oil is delivered
The swashplate does not have to stay at full angle. Pressure, load signal or an electrical command can move the control mechanism, depending on the pump build. Reduce the angle and piston stroke gets shorter. Flow comes down. When the circuit asks for more, the pump can move back toward a larger displacement.

Model Range

For this page, all versions use the same nominal 45 cc frame. What changes is the series and the build around the rotary group.

Version	Pressure Class	Speed / Flow Direction	Typical Reason for Selection
A10VO45 Series 31	280 / 350 bar	2,600 rpm / 117 L/min	Higher working-pressure requirement
A10VO45 Series 31 High Speed	280 / 350 bar	3,000 rpm / 135 L/min	More flow without moving to a larger displacement
A10VO45 Series 52	250 / 315 bar	2,600 rpm / 117 L/min	Standard mobile and machine hydraulic layouts
A10VO45 Series 53	250 / 315 bar	2,600 rpm / 117 L/min	More specific control and electro-hydraulic builds

A10VO45 Series 31

A common replacement size with the stronger pressure rating in this group.

A10VO45 Series 52

Often selected for medium-pressure open circuits where a straightforward pressure or pressure/flow controller is needed.

A10VO45 Series 53

Worth checking carefully on the control side. Electrical connectors, controller body and overall pump length can change with the code.

Applications & Industries

Industry	Equipment Examples	What the Pump Does
Construction Machinery	Excavators, loaders, drilling equipment	Feeds work functions as flow demand changes
Agricultural Machinery	Harvesters, sprayers, utility machines	Runs implements and auxiliary hydraulic circuits
Material Handling	Forklifts, mobile handlers, lifting equipment	Supplies lifting, steering and attachment functions
Road Machinery	Pavers, graders, maintenance machines	Covers changing oil demand through the work cycle
Forestry Equipment	Carriers, forestry attachments, feed systems	Handles variable hydraulic loads in off-highway work
Industrial Equipment	Power units, test rigs, custom machines	Provides adjustable open-circuit flow in a compact frame

Construction Machinery

Agricultural Machinery

Material Handling

Road Machinery

Forestry Equipment

Industrial Equipment

About Us

SheungChak is an independent OEM producer of hydraulic piston pumps and motors. The A10VO45 units supplied from our factory are part of our own production program.

Replacement work is usually where the details show up. One customer sends a Series 31 code. Another has a Series 52 pump with no readable tag. Sometimes all we get is a machine model and four photos. Our technical team checks what is actually there-the shaft, controller, ports, rotation and rear housing-before the order goes to production.
That takes a little more checking at the beginning. Fine with us. A wrong controller costs far more time later.
Factory experience: 20+ years
Main products: Variable piston pumps, fixed piston pumps, hydraulic motors and pump parts
Main export markets: Europe / South America / Middle East / Southeast Asia / Africa
MOQ: 1 pc
Sample orders: 1 pc
Normal lead time: 1-2 Days
OEM service: Code matching, drawing review, sample production and batch supply

Certifications

Certificate name

Our Factory & Quipment

Sheungchak hydraulic pump factory production floor

cooperative partner

We are looking for a cooperative partner to expand our business.

FAQ Display Content

1) Is A10VO45 a fixed or variable pump?

Variable. Its swashplate changes piston stroke, so the pump can reduce or increase displacement while the drive shaft keeps running.

2) What is the main difference between Series 31, 52 and 53?

Series 31 uses the higher 280/350 bar pressure class. Series 52 and 53 work at 250/315 bar. Series 53 is often seen with more involved electro-hydraulic or proportional control arrangements. The complete codes still need checking before replacement.

3) Does Series 31 have a high-speed A10VO45 version?

Yes. The standard Series 31 size 45 runs up to 2,600 rpm at full displacement, while the high-speed version reaches 3,000 rpm. Theoretical flow rises from 117 to 135 L/min.

4) Can a Series 31 pump directly replace Series 52 or 53?

Not automatically. All three may say A10VO45, but pressure rating, controller, mounting details and port arrangement can differ. We check the complete code first.

5) Can another pump be mounted behind the A10VO45?

Selected versions support through drive. The second pump still has to pass the coupling and shaft-torque check. Matching the rear flange alone is not enough.

6) What maintenance matters most?

Keep the oil clean, avoid a restricted suction line and watch the case-drain condition. Fill the housing before first startup. A sudden increase in noise, temperature or drain flow deserves attention rather than another week of running.

7) How is A10VO45 different from a gear pump?

A gear pump is normally simpler and fixed displacement. A10VO45 lets the system change pump output through the swashplate and controller. More control flexibility, but also more demand on oil cleanliness and setup.

8) What information do you need for a quotation?

The full model code is best. If it is unreadable, send the shaft side, controller side, port side and rear housing photos. Add working pressure, drive speed, machine use and quantity. Also tell us whether it is Series 31, 52 or 53 if you already know.
