Guangdong Sheungchak Hydraulic Technology Co., Ltd. is one of the leading manufacturers and suppliers of pvb10 in China. With abundant experience, we warmly welcome you to buy high-grade pvb10 for sale here from our factory. All customized products are with high quality and competitive price. Contact us for quotation.

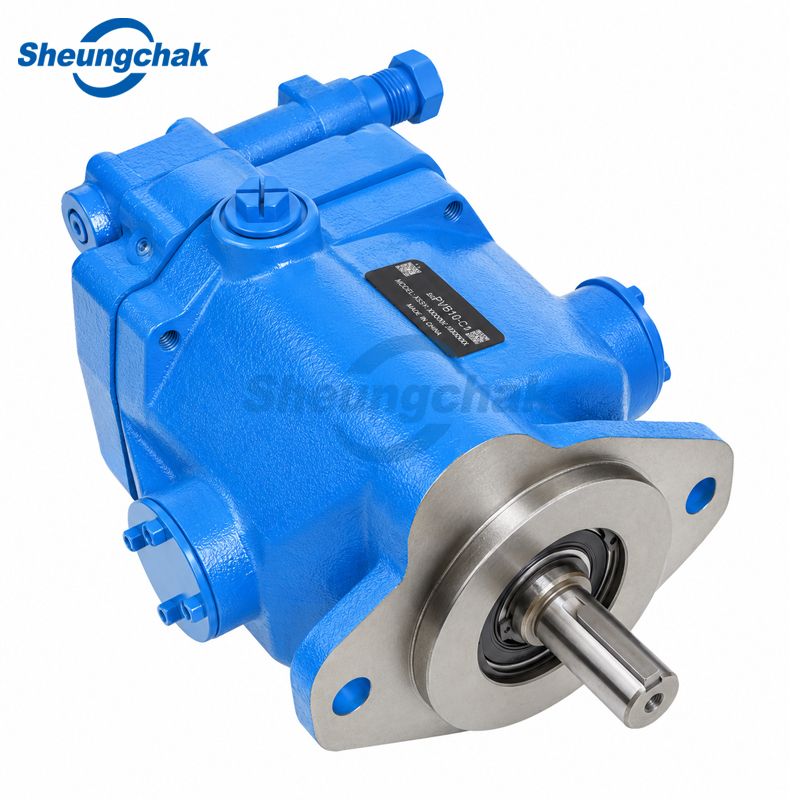

On the nameplate, PVB10 tells you the pump size. The PVB10 hydraulic pump is a 21.10 cm³/rev variable-displacement axial-piston unit for an open circuit. At 1800 rpm, catalog delivery is roughly 37.5 L/min (10 US gpm). With suitable anti-wear oil, the published pressure limit is 210 bar. Those figures are useful for screening a Vickers PVB10 replacement, but they are not the whole selection.
A compensated PVB10 is often fitted where demand changes during the machine cycle-a clamp closes, a press holds, or a conveyor pauses. When the circuit reaches the compensator setting, this variable displacement piston pump backs away from full displacement instead of sending all of its flow across the relief valve. Less wasted flow usually means less heat.
The suffixes matter. Rotation, shaft, design number, port layout and control can differ even when two nameplates both begin with PVB10. Before we quote, we normally ask for a readable nameplate photo and, on older or modified machines, the shaft and port dimensions as well.
Key Features & Benefits
Variable output: the swashplate reduces delivery when the circuit does not need full flow.
Several control choices: standard compensation, remote adjustment and load sensing were offered.
Service-friendly identification: the code separates rotation, shaft, control and design variations.
[Talk to Our Engineers About Your Application →]
Technical Specifications
|
Item |
PVB10 Catalog Data |
|
Construction |
Open-circuit axial piston swash plate pump |
|
Displacement |
21.10 cm³/rev (1.29 in³/rev) |
|
Maximum Speed |
1800 rpm |
|
Delivery at 1800 rpm |
Approx. 37.5 L/min (10 US gpm) |
|
Maximum Pressure, Anti-wear Oil |
210 bar (3000 psi) |
|
Maximum Pressure, Water-containing Fluid |
140 bar (2000 psi) |
|
C Compensator Range |
17–210 bar (250–3000 psi) |
|
CM Compensator Range |
17–100 bar (250–1500 psi) |
|
Typical Keyed Shaft |
22.2 mm (0.875 in) |
|
Maximum Case Pressure |
0.35 bar (5 psi) |
|
Preferred Viscosity |
13–54 cSt |
|
Recommended Cleanliness |
ISO 4406 20/18/14 or better |
The delivery figure assumes 1800 rpm. A 1500 rpm motor will give less flow, and hot-oil leakage reduces it further.
[Request Quote for Your Displacement & Control Type →]
How It Works
The shaft turns a barrel of axial pistons against a valve plate.
Swashplate angle decides piston stroke and flow.
On a compensated PVB10, rising outlet pressure moves the plate toward a smaller angle; when the circuit asks for oil again, the pump strokes up. The circuit still needs a relief valve.
Model Range
|
Version |
Control Type / Main Difference |
|
PVB10-C |
Pressure compensation, adjustable from 17 to 210 bar |
|
PVB10-CM |
Lower compensator range, adjustable from 17 to 100 bar |
|
PVB10-CC / PVB10-CMC |
Pressure compensator with maximum-displacement stop |
|
PVB10-CG / PVB10-CCG |
Remote pressure adjustment |
|
PVB10-CVP |
Load sensing with pressure limiting |
|
PVB10-H / PVB10-M / PVB10-V |
Hand-operated or mechanical displacement control |
Installation Notes
Prime the housing through the upper case-drain connection. Run that drain to tank through a full-size, unrestricted line; the published case-pressure ceiling is only 0.35 bar (5 psi). Check motor rotation before fitting the coupling, align both shafts and keep belt side-load off the pump shaft. A restricted inlet or an air leak can make a new axial piston hydraulic pump sound faulty within seconds.
Applications & Industries
The PVB10 is most at home on industrial equipment that alternates between fast movement and a pressure-holding stage. The examples below are typical rather than a complete application list; final selection still depends on the duty cycle, oil and drive speed.
|
Industry |
Equipment Examples |
What the Pump Does |
|
Metalworking |
Hydraulic presses, bending machines, punching lines |
Provides quick approach flow, then reduces delivery while the ram works or holds pressure. |
|
Machine Tools |
CNC machining centers, fixtures, tool changers |
Feeds clamping, axis and tool-change functions without sending full flow across the relief valve during idle periods. |
|
Plastics Processing |
Injection-molding machines, extrusion lines |
Supplies clamp, ejector and auxiliary circuits that alternate between movement and pressure-holding stages. |
|
Material Handling |
Lift tables, powered conveyors, positioning rigs |
Covers the movement portion of the cycle and destrokes when the actuator stops. |
|
Industrial Hydraulic Systems |
Custom power packs, multi-function hydraulic stations |
Feeds several functions from one reservoir where the duty combines motion with pressure holding. |
Replacement Information We Need
Please send the complete model code, part number, nameplate photo, quantity and destination. When the plate is unclear, add rotation, shaft dimensions, mounting pilot, bolt spacing, port positions, motor speed, working pressure and fluid type. We use those details to check a proposed PVB10 replacement pump before quoting.
About Us
SheungChak builds hydraulic piston pumps, motors and replacement parts under our own OEM production program. The PVB10 supplied from us is produced as a SheungChak product.
Small pumps can actually be annoying replacement jobs. There is less room to hide a mistake. Wrong rotation and A/B swap. Wrong shaft. Wrong compensator. A 0.75-inch shaft can still be wrong if the key or projection does not match.
Our usual check is quick: nameplate, shaft photo, rear ports, controller side. For an old unit with no readable code, send the pilot diameter too. Around 82.5 mm immediately tells us a lot.
Factory experience: 20+ years
Main products: Piston pumps, piston motors and hydraulic replacement components
Main markets: Europe / South America / Middle East / Southeast Asia / Africa
MOQ: 1 PC
Sample orders: 1 PC
Normal lead time: 1-2 days
OEM support: Drawing check, code matching, dimensional verification and batch production.
Certifications
Certificate name
Certificate name
Certificate name
Certificate name
Certificate name
Our Factory & Quipment
cooperative partner
We are looking for a cooperative partner to expand our business.
FAQ Display Content
1,Is the PVB10 a swash plate pump?
Yes. It is an adjustable **axial piston swash plate pump**, not a bent-axis pump.
2,What is the displacement of a PVB10 hydraulic pump?
The catalog displacement is 21.10 cm³/rev, or 1.29 in³/rev.
3,How much flow does a PVB10 deliver?
Published delivery is about 37.5 L/min (10 US gpm) at 1800 rpm. Actual flow changes with shaft speed, pressure, oil temperature and internal leakage.
4,What is the maximum working pressure?
With suitable anti-wear hydraulic oil, the published maximum is 210 bar (3000 psi). Versions operating on water-containing fluids are limited to 140 bar (2000 psi).
5,What is the difference between PVB10-C and PVB10-CM?
Both use pressure compensation. The C control covers approximately 17–210 bar, while the CM control covers approximately 17–100 bar.
6,Which rotation is available for the PVB10?
Clockwise and counter-clockwise builds exist. Rotation is identified while viewing the pump from the shaft end, so the complete nameplate code must be checked before ordering.
7,Are all Vickers PVB10 pumps interchangeable?
No. Rotation, shaft, mounting, ports, control and design level must match. PVB10 alone is not a complete ordering code.
8,Can a design 41 pump replace a design 31 pump?
Sometimes, but not on the design number alone. The complete code and installation dimensions need checking first.
9,What information is needed for a PVB10 replacement quote?
Send the full model code, part number, a clear nameplate photo, quantity and destination. If the code is incomplete, add shaft dimensions, rotation, mounting details and port photographs.
Vickers and Danfoss are trademarks of their respective owners. The names are used only for product identification and replacement reference. Unless a quotation states otherwise, Sheungchak is not affiliated with or endorsed by those trademark owners.
[Have a Question Not Listed Here? Contact Our Engineers →]
