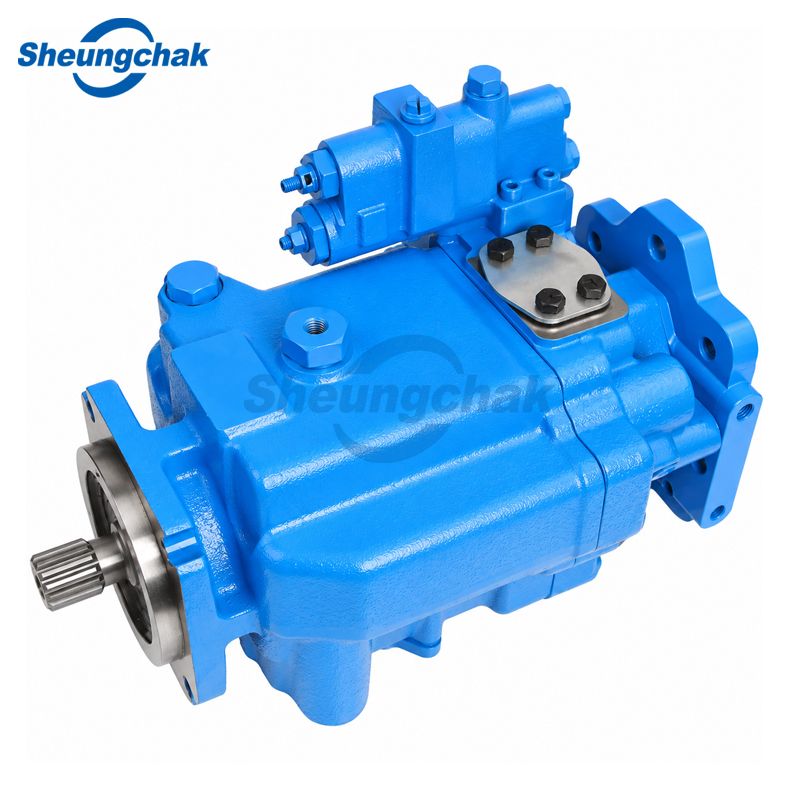

The zero causes more confusion than it should. A mechanic asks for PVH98. The plate says PVH098. Same 98.3 cc size-end of that part of the puzzle. Rotation, shaft, ports and control are still unanswered.
The back-of-the-envelope flow is 176.9 L/min at 1800 rpm. The catalog bench figure is about 170 L/min at 250 bar. Use 170 when comparing a new pump with the machine requirement. Use the theoretical number only to check the arithmetic.
The long line is where the useful detail lives. PVH098R01AD30B252000001001AB010A, for example, describes one right-hand build with a particular front end, port group and B controller. Moving one character can produce a pump that bolts up but behaves wrongly when the valve closes.
Watch the speed table too. The ordinary industrial reference is 1800 rpm at zero gauge inlet pressure. A mobile arrangement is listed at 2100 rpm and about 202 L/min. We do not borrow that faster number for an unidentified industrial unit. The valve plate and inlet both have to suit it.
Before removing the old PVH098 hydraulic pump, take one clear plate photo. After removal, photograph the shaft straight on, both main ports, controller, drain and back. If another pump was coupled behind it, show the adapter and the coupling separately.
Key Features & Benefits
- The tilted plate changes delivery without asking the drive motor to change speed.
- Standard industrial petroleum-oil versions are listed for 250 bar.
- At the compensator setting, the rotating group comes back toward neutral.
- A B control also reads the load-sense signal from the valve circuit.
- Torque control sheds flow as pressure rises; this protects the available input power.
- Mechanical and electronic displacement controls exist for less common circuits.
- A rear drive is possible, but only after checking spline, adapter and combined torque.
[Talk to Our Engineers About Your Application →]
Technical Data
|
Item |
PVH098 Catalog Data |
|
Pump construction |
Open-circuit, in-line variable displacement axial piston pump |
|
Maximum geometric displacement |
98.3 cm³/rev (6.00 in³/rev) |
|
Industrial rated pressure, petroleum oil |
250 bar (3625 psi) |
|
Load-sensing pressure setting note |
Up to 280 bar (4060 psi) is listed for applicable load-sensing systems; confirm the controller and duty |
|
Industrial rated speed at 127 mm Hg inlet vacuum |
1500 rpm |
|
Industrial rated speed at zero gauge inlet pressure |
1800 rpm |
|
Industrial rated speed with 0.48 bar inlet boost |
1800 rpm |
|
Mobile rated speed at zero gauge inlet pressure |
2100 rpm |
|
Theoretical flow at 1800 rpm |
Approx. 176.9 L/min (46.7 US gpm), before volumetric loss |
|
Typical industrial effective flow at 1800 rpm |
Approx. 170 L/min (45 US gpm) at rated pressure under catalog conditions |
|
Typical mobile effective flow |
Approx. 202 L/min (53 US gpm) at 2100 rpm, 250 bar and zero gauge inlet pressure |
|
Approximate dry mass |
43–49 kg (95–108 lb) basic; 44–50 kg (97–110 lb) with thru-drive |
|
Optimum oil viscosity |
16–40 cSt (80–180 SUS) |
|
Common front mounting |
SAE J744 four-bolt C; verify the exact pilot and shaft code |
|
Shaft rotation |
R clockwise or L counter-clockwise, viewed from the shaft end |
|
Main-port arrangement |
Several SAE flange sizes, locations and orientations are cataloged |
|
Petroleum-oil inlet-temperature reference |
Up to 93 °C (200 °F), subject to viscosity and system limits |
|
Alternate-fluid pressure guidance |
Polyol ester 230 bar; water glycol 172 bar; high-water-base fluid 155 bar |
The table is a starting point. A suction hose that behaves at 1500 rpm can starve the same pump at 2100. Before raising speed, look at hose bore, bends, cold-oil viscosity and the pressure actually measured at the inlet.
[Request Quote for Your Displacement & Control Type →]
How It Works
The shaft carries the cylinder barrel around. Pistons sit in that barrel and their slippers follow the sloping swashplate. A bore opens to the inlet while its piston moves out. Half a turn later the same piston comes in and sends oil to the pressure port.
Tilt sets the stroke. At full tilt, delivery is close to 98.3 cc per turn. Near neutral, the pistons hardly travel. That is the useful trick in a variable displacement axial piston pump: during a hold, it can keep pressure without forcing full flow across a relief.
Which signal moves the yoke depends on the controller code. An A control sees outlet pressure. A B control also sees the load-sense line. Torque and electronic versions add their own instruction. None of them can work properly with a plugged case drain or an inlet full of air.
Model Range
|
PVH098 Version / Code |
Control or Configuration |
Main Selection Point |
|
PVH098-A |
Pressure compensator |
Match the pressure-setting code and rotation |
|
PVH098-B |
Pressure and flow compensator |
Verify load-sense margin and signal connection |
|
PVH098-D |
Pressure compensator with torque sensing |
Check torque setting against the prime mover |
|
PVH098-E |
Pressure and flow compensator with torque sensing |
Confirm both load-sense and torque requirements |
|
PVH098-G |
IC pressure compensator |
Match the IC circuit and external valve arrangement |
|
PVH098-H |
IC pressure and flow compensator |
Check IC plumbing and the remote signal line |
|
PVH098-J |
IC pressure and flow with torque sensing |
All controller functions must match the old circuit |
|
PVH098-K / L |
Electronic displacement control, with or without shuttle valve |
Verify command type, connector and hydraulic logic |
|
PVH098-N |
Pressure and flow control with unloading valve |
Match unload pressure and reset behavior |
|
PVH098 thru-drive |
SAE A or SAE B auxiliary-drive arrangements |
Check rear interface, spline, torque and clearance |
The control letter is only one box checked. A Vickers PVH98 pump code still has to settle rotation, valve plate, shaft, front mount, port group, drain, seals, stop and design suffix. Read past the B or A.
Applications & Industries
A 98 is usually chosen because the machine needs real flow, not because it happens to fit the bracket. These five groups are sensible uses. Duty cycle and inlet layout decide whether a particular code survives in them.
Mining Machinery
Foundation Drilling
Large Wheel Loaders
Crawler Cranes
Concrete Pumping
|
Industry |
Equipment Examples |
What the Pump Does |
|
Mining Machinery |
Underground utility vehicles, service rigs, ore-handling machines |
Supplies working flow, then comes off stroke during the quieter part of the cycle. |
|
Foundation Drilling |
Rotary piling rigs, diaphragm-wall equipment, anchor drills |
Feeds rotary, crowd and clamp functions as the ground load changes. |
|
Large Wheel Loaders |
Quarry loaders, log loaders, heavy material handlers |
Runs lift, tilt and auxiliary functions, with pressure ready near breakout. |
|
Crawler Cranes |
Lattice-boom crawlers, foundation cranes, duty-cycle cranes |
Serves winch, boom and auxiliary circuits without wasting full flow in standby. |
|
Concrete Pumping |
Truck-mounted concrete pumps, stationary pump packages, placing booms |
Moves the boom and support cylinders, then destrokes during a hold. |
About Us
SheungChak builds hydraulic piston pumps, motors and replacement parts under our own OEM production program. The PVH098 hydraulic pump supplied from us is produced as a SheungChak product.
Small pumps can actually be annoying replacement jobs. There is less room to hide a mistake. Wrong rotation and A/B swap. Wrong shaft. Wrong compensator. A 0.75-inch shaft can still be wrong if the key or projection does not match.
Our usual check is quick: nameplate, shaft photo, rear ports, controller side. For an old unit with no readable code, send the pilot diameter too. Around 82.5 mm immediately tells us a lot.
Factory experience: 20+ years
Main products: Piston pumps, piston motors and hydraulic replacement components
Main markets: Europe / South America / Middle East / Southeast Asia / Africa
MOQ: 1 PC
Sample orders: 1 PC
Normal lead time: 1-2 days
OEM support: Drawing check, code matching, dimensional verification and batch production.
Certifications
Certificate name
Certificate name
Certificate name
Certificate name
Certificate name
Our Factory & Quipment
cooperative partner
We are looking for a cooperative partner to expand our business.
FAQ Display Content
Q: Are PVH098 and PVH98 the same size reference?
A: Yes. Both mean the 98.3 cc PVH size. Write 098 when copying the plate, and keep copying-the characters after it are the ones that settle the build.
Q: What flow does PVH098 produce at 1800 rpm?
A: 176.9 L/min by arithmetic. On the catalog test, expect about 170 L/min at 250 bar. A field flow meter also sees the effect of hot oil and wear.
Q: What is the continuous pressure rating?
A: For the standard industrial petroleum-oil build, 250 bar (3625 psi). Water glycol and other fluids change the answer, so tell us what is in the tank.
Q: Can this pump run at 2100 rpm?
A: The mobile arrangement can. Its table shows 2100 rpm at zero gauge inlet pressure. The industrial row says 1800. Find the valve-plate duty before changing a motor or pulley.
Q: What does a B controller mean?
A: B is pressure-and-flow control-the load-sense version. It needs the small signal line and the right margin. Leaving that line open or capped gives a machine that does not behave as expected.
Q: Is PVH098 interchangeable with PVM098?
A: No. They share a 98.3 cc number, not a complete design. PVM098 belongs to the 315 bar industrial family; the standard PVH098 line here is 250 bar. Controls and codes differ too.
Q: Can I change from right-hand to left-hand rotation?
A: Not as a casual workshop change. Rotation is part of the internal timing. Read R or L while looking at the shaft end and order the same direction.
Q: Does a thru-drive change the pump length?
A: Yes. The adapter adds length, and the second pump adds torque. Measure the space and check the rear spline before treating a thru-drive as a plain cover swap.
Q: Why is the actual flow lower than displacement times rpm?
A: Some oil always leaks across running clearances. Pressure, temperature and wear change how much. Displacement × rpm is a sizing check; the tested flow is the useful comparison.
Q: Is this a genuine Vickers PVH098 pump?
A: No. SheungChak makes this compatible replacement. The Vickers, Eaton and Danfoss names are used to identify the series being matched.
Q: What should I send with an inquiry?
A: Send the whole code, quantity and destination. Add five useful photos: nameplate, shaft, main ports, controller and rear face. A blurred overall photo rarely answers the hard questions.
